Lamilux Glass Skylight FE

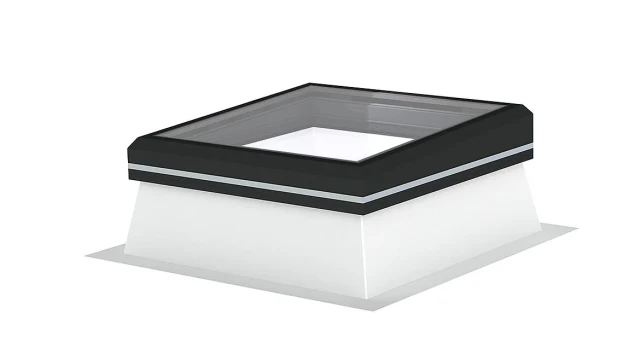

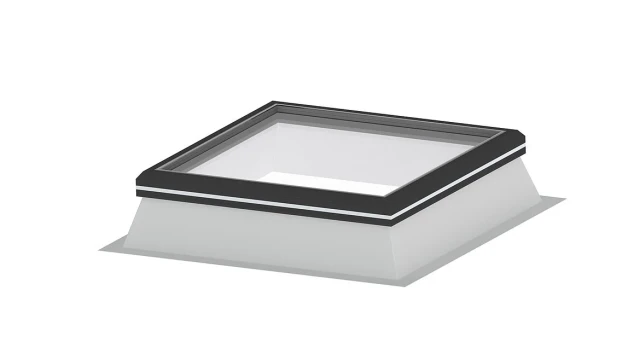

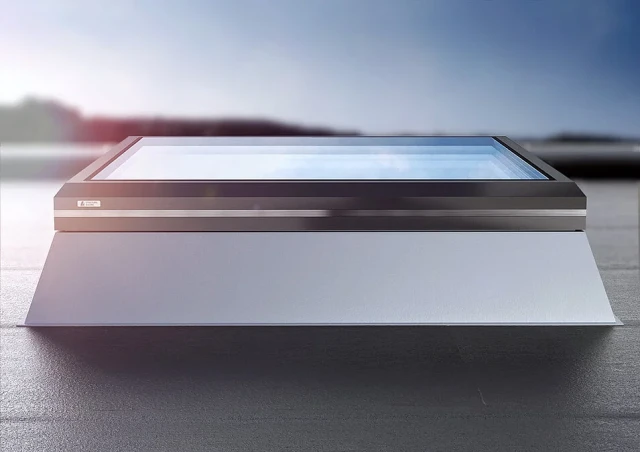

LAMILUX Glass Skylight FE 3°

The LAMILUX Glass Skylight FE 3° combines elegant, award-winning design with smart functionality: Its stepless 3° inclination allows water and dirt to drain away efficiently, helping to keep the glazing clear while maintaining a sleek appearance on the flat roof. The flush structural glazing and surrounding aluminium profile, available in a wide range of RAL colours, blend seamlessly into the building’s architecture. A thermal-bridge-free construction, thermally optimised insulation core and standard warm-edge spacers support excellent thermal performance, while sound-insulating glazing minimises external noise and the sound of rain. Different glazing types concealed opening drives and optional sun protection allow the skylight to be tailored to individual project requirements. Manufactured in custom centimetre increments, and combined with the 3° inclination, it is ideally suited for the refurbishment of existing skylights. Delivered fully pre-assembled and BIM-ready, it supports efficient planning and installation. Tested weather resistance, a hail-resistant outer pane and permanent fall-through protection ensure reliable, long-lasting performance.

Safety

• Approved fall-through protection as per DIN 18008-6
• Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
• High hail resistance thanks to TSG outer pane as a standard feature

Quality

• Optimal thermal insulation thanks to overall structure free of thermal bridges
• Intelligent controls for natural ventilation and sun protection blinds
• Optimised soundproofing and minimised rain noise
• Tightness against driving rain as per DIN EN 1027 = E (1950)
• Permeability to air in line with DIN EN 1026 = Class 4
• Resistance against wind load in line with DIN EN 12211 = C5
• Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE 3°

Design

• Uniform appearance
• Aesthetic, classical and elegant design language
• Stepless transition between frame profile and glazing
• Unobstructed drainage of water and dirt thanks to the element's 3° inclination
• Award winning design
• Wide variety of colours based on RAL system (surrounding profile)

Use

• Our LAMILUX Glass Skylight FE 3° is BIMready – Download at bimobjects.com
• Fully pre-assembled delivery of the element to the construction site
• Simple installation
• Efficient maintenance

LAMILUX Glass Skylight F100

No more annoying dirty edges: The new structural glazing construction provides for a level water drainage - the first glass skylight of its kind

The overall construction without thermal bridges ensures good thermal insulation with a U value of 1.21 to 1.00 W/(m²K)

The LAMILUX Glass Skylight F100 combines durable construction with a clean, modern design for residential, educational, administrative and industrial buildings.

Its thermal-bridge-free structure, double balloon sealing system and thermally insulated GRP upstand support excellent insulation and airtightness for a comfortable indoor climate throughout the year.

The smooth transition between the glazing and frame allows rainwater to drain freely, helping to prevent dirty edges and reduce maintenance.

Available with double or triple glazing, the skylight provides generous daylight, effective sound insulation and lasting clear views through scratch-resistant safety glass.

Concealed chain drives enable natural ventilation without disrupting the interior appearance, while optional sun protection adds further comfort.

Delivered fully pre-assembled and BIM-ready, the F100 ensures efficient planning and installation. For refurbishment projects, an adapter frame can create a 5° inclination for improved water drainage.

Permanent fall through protection, tested weather resistance, and fire performance complete this reliable daylight solution.

Stability

• Tested watertightness, even in high wind speeds (driving rain impermeability, in accordance with EN 12208, Class E 1500)
• Very high load-bearing capacity due to optimised profiles
• Approved fall-through protection
• Excellent stability under wind and snow loads
• UV-resistant edge bond

Energy efficiency

• Available in double or triple glazing, toughened safety glass (TSG) on the outside and laminated safety glass (LSG) on the inside (LSG can be fitted with a clear or matt-light film) with Ug-values of 1.1 to 0.61 W/m²K
• Structure completely free of thermal bridges with a Uw-value between 1.45 and 0.94 W/m²K, depending on the glazing (as per EN ISO 10077-1 for a reference element measuring 120cm x 120cm)
• Thermally insulated, jointless GRP upstand, with a height of 15, 30, 40 or 50cm, with U-values of 0.5 W/m²K to 0.9 W/m²K (depending on the characteristics)
• Outstanding air-tightness due to the new double balloon sealing system: Performance class 4 – tested in accordance with EN 12207
• Thermally optimised structural attachment, such as a thermally insulated base flange
• Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Skylight F100 in accordance to ISO EN 15804

Comfort

• Farewell to dirty edges: The newly designed frame profile has a smooth transition between the glazing and the frame, allowing rainwater to run off without any obstructions
• The new chain drive technology complies with protection class IP 54 and allows easy opening for ventilation purposes
• Chain drive – concealed from view and equipped with new, IP 54-rated technology
• Our Glass Skylight F100 is BIM-ready – Download at bimobject.com
• Generous daylight incidence and lasting clear views due to scratchproof glazing
• Extra convenience, if required, with structural mounts for membrane roofs, prepared at the factory
• Optimised sound insulation and minimised rain noise due to special glazing (Rwp = 38 dB)
• White, silk-matt appearance inside – no additional drywall construction required
• Optional connection to comfort control unit with wireless remote controls

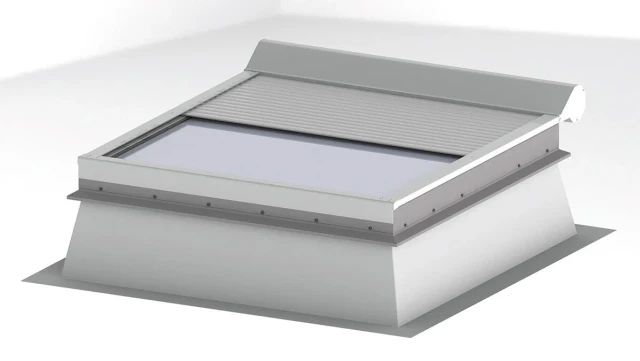

• Sun protection inside and outside (optional)

Safety

• The first building approved glass skylight in “Structural Glazing” design – certified by the German Institute for Structural Engineering (Deutsche Institut für Bautechnik, DIBt) in Berlin
• Condensation resistant between glass panels, due to thermally decoupled edge bond, unlike plastic domes
• Preventive fire protection: Compliance with DIN 18234 – to prevent fire spread on the roof without additional measures such as gravel fill
• Can be used as a SHEV system in staircases
• Delivery of Glass Skylight F100 completely pre-assembled on the upstand
• Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5
